ATEN 8-port Cat.5 KVM PS/2+USB, OSD, dual rail rack, 19" LCD, touchpad, klávesnice

KL1508AN
ATEN 8-port Cat.5 KVM PS/2+USB, OSD, dual rail rack, 19" LCD, touchpad, klávesnice

- provedení Dual Rail Rack, pro jednoduchou manipulaci a nastavení pracovní pozice, oproti standardnímu provedení
- LCD 19"

8-Port Cat 5 High-Density Dual Rail LCD KVM Switch

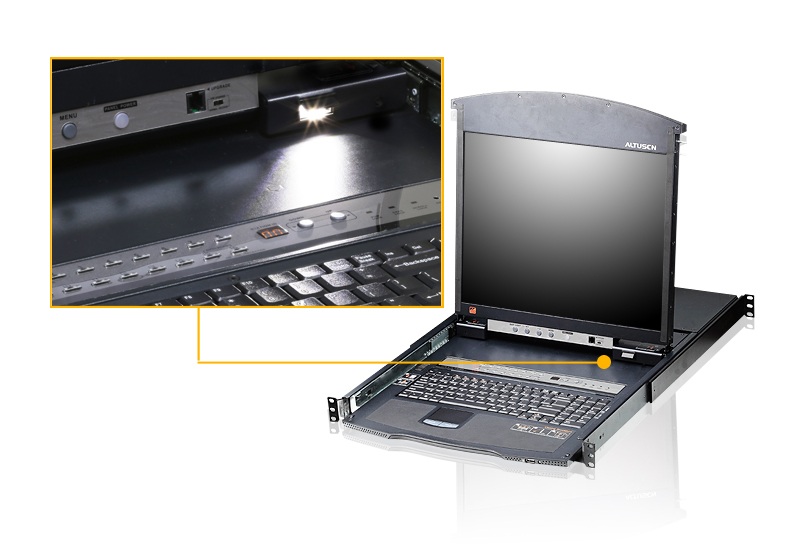

ALTUSEN KL1508 LCD KVM Switch features independently retractable, dual slide 17" or 19" LCD monitor and keyboard with built-in touchpad. A single KL1508 can control up to 8 computers. For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1508 permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

Features


KVM console with 17"or 19" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack
Dual Rail operation - LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock enables the sliding console to remain securely locked away when not in use
A single console controls up to 8 computers - daisy chain up to 31 additional units to control up to 256 computers
KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation.
RJ-45 connectors and Cat 5e/6 cable - extends the distance between computers and switch - up to 40m (130') for resolutions of 1280 x 1024 @75Hz

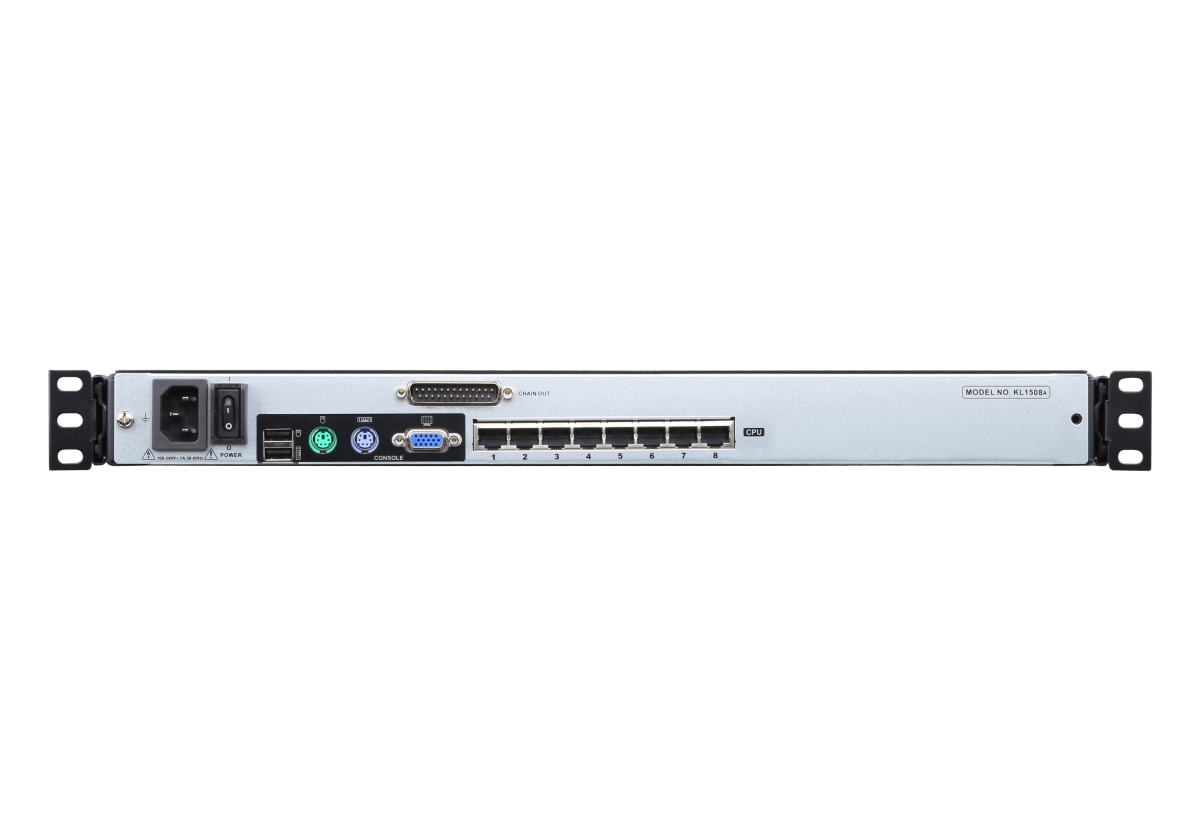

A dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
OSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easy
Quickly and conveniently switch to any computer with station and port selection switches - LED displays indicate the station and port location
Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Auto Scan feature for monitoring user-selected computers
Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for each
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Standard 105-key keyboard; Mac and Sun keyboard emulation
Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
Rack mountable in 19" System Rack (1U) - standard rack mount kit included - optional Easy Rack Mount (single person installation) kit available (requires separate purchase)
Super A-Grade TFT LCD Panel; Zero Dead Pixel Guarantee
Multiplatform support: Windows 2000/XP/Vista, Mac, Linux, Unix, Sun, FreeBSD
For more information about KVMs which can connect to KL1508, see Compatible KVM Table


Rack Mount Kit Depth (cm)
Short (Standard) 42 - 77

 Package Content


1x 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1x Firmware Upgrade Cable
1x Power Cord
1x User Manual
1x Quick Start Guide
