Product details
The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. It support 4K@30Hz , FULL HD 1080P, 3D & HDMI 1.4
- Supports 4K @ 30Hz, FULL HD 1080p up to 60m

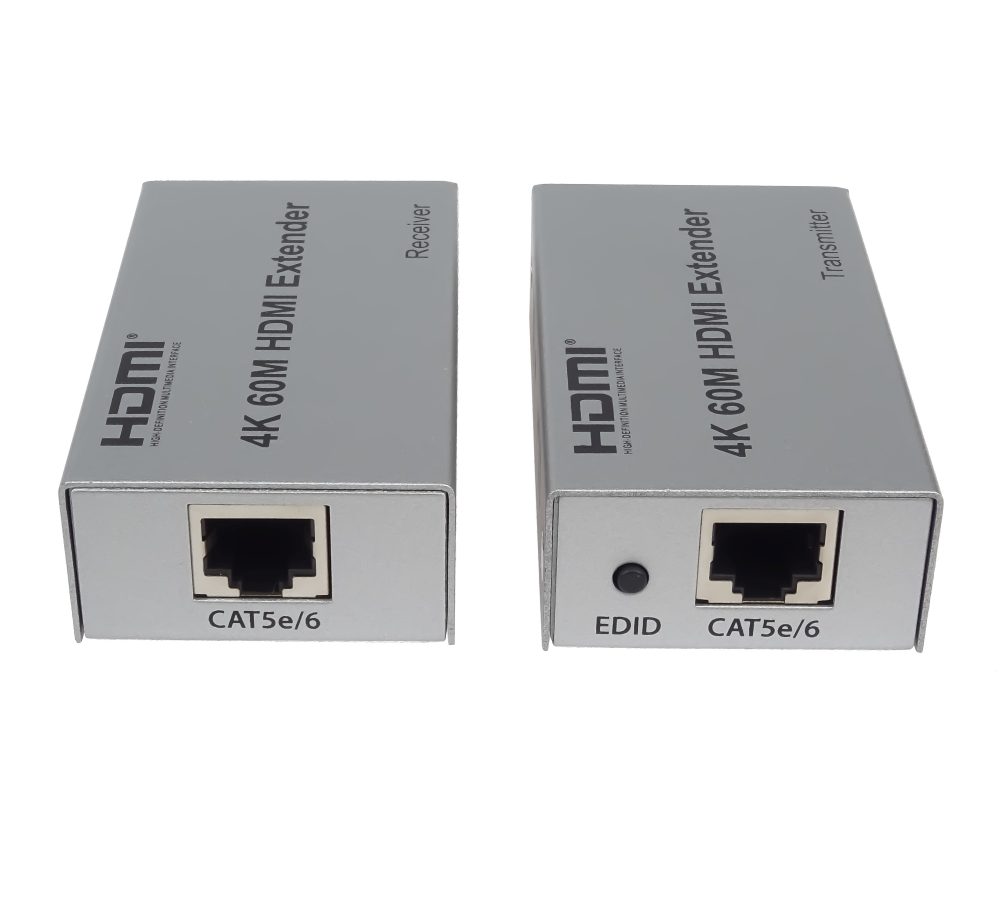

- The HDMI extender consists of a TX transmitter and an RX receiver

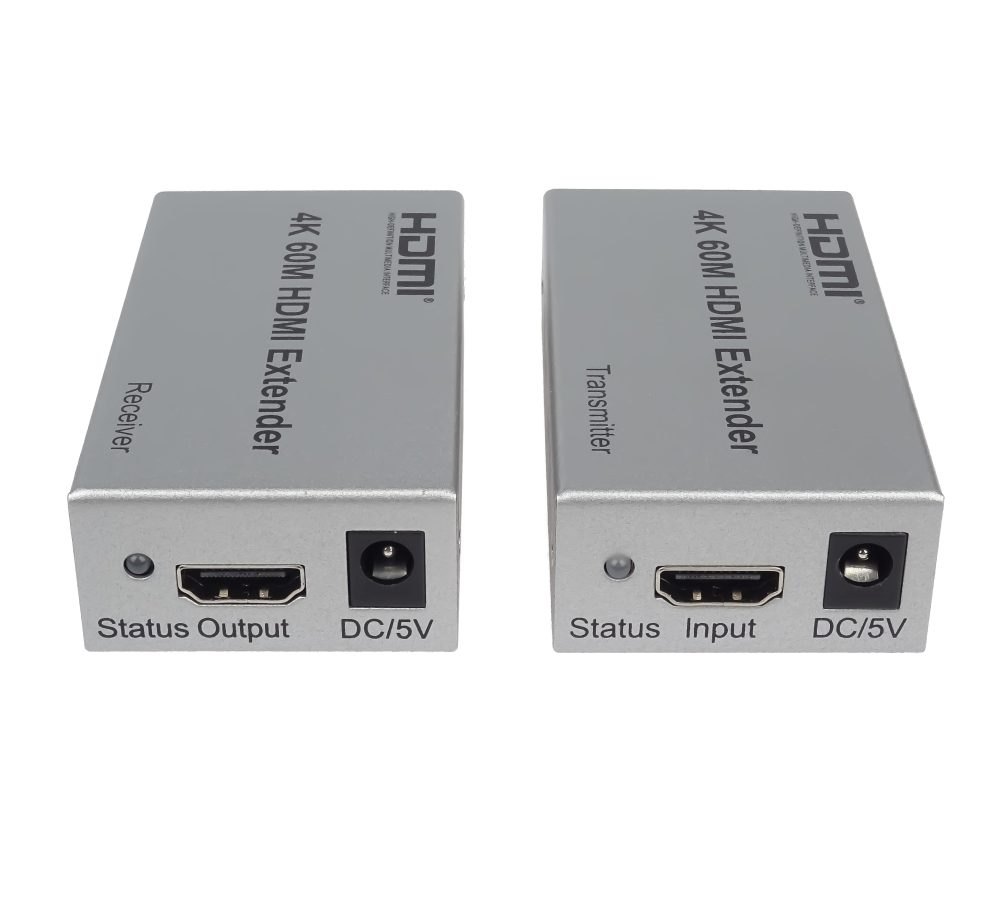

- Transmitter / receiver input / output connectors: HDMI female
- Transmitter / receiver connectors: RJ45 female
- High quality 1x LAN cable Cat5e, Cat6 or Cat7 is used for TX and RX connection
(For 60m distance use copper cable with AWG23 wires, for example UTP Cat6 cable in footage code: sutpd6c3)
- 3x3,4 Gbps bit rate including HDCP support
- Bandwidth: 340MHz
- For resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K @ 30Hz
- Support video color format: deep color 24bit,30bit,36bit,48bit
- Extender transmits HDMI digital video and audio
- The Extender must not be connected to an active computer network, switch, router or other active network device. The extender transmitter and receiver must be directly connected to the LAN cable, preferably without interruption.
- HDMI input and output cables can be up to 10m long with AWG of these AWG26 cables (AWG26 applies to 7m and 10m cables)

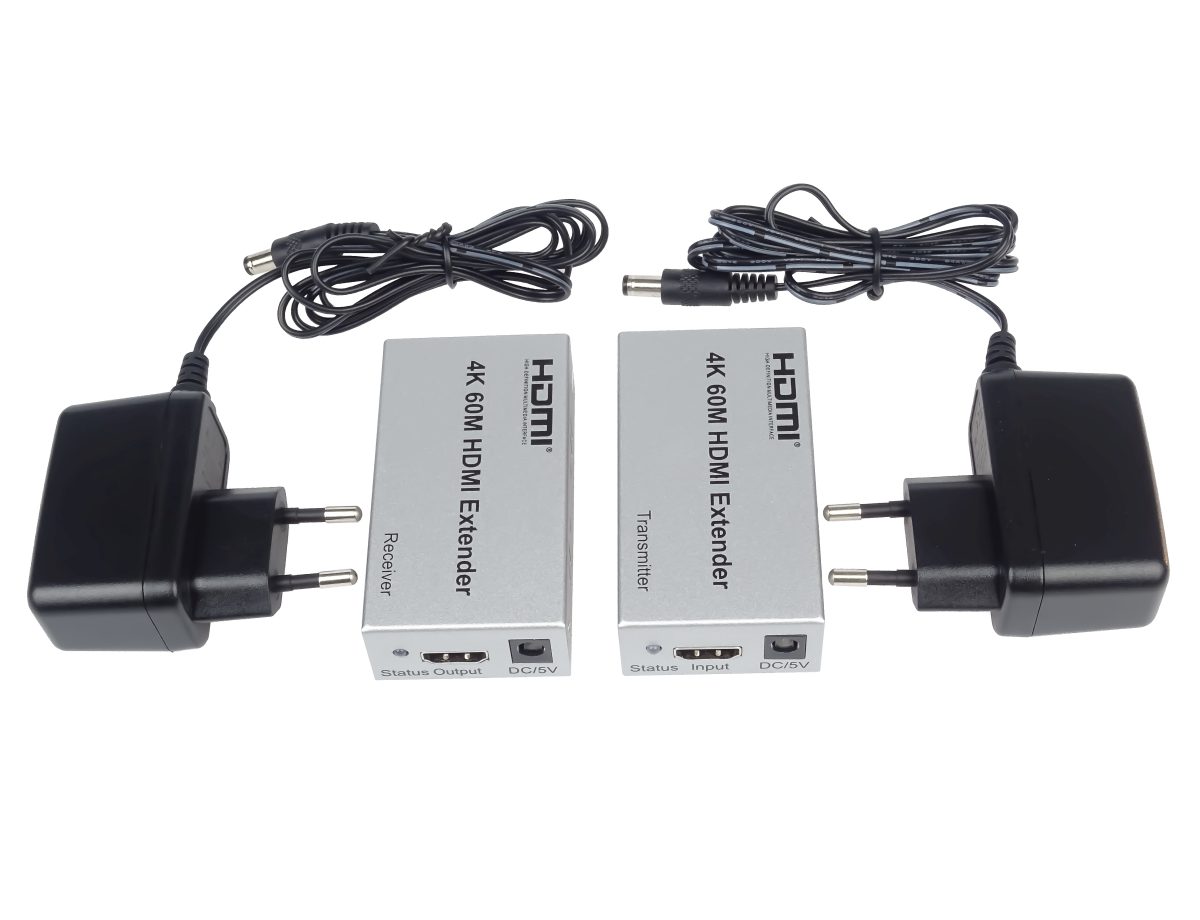

- The transmitter and receiver are powered from the included 230V / 5V, 1A power adapters
- The units contain a practical EDID button, when you hold down the EDID button for longer, the resolution switches from FULL HD 1080p to 4K @ 30Hz and vice versa

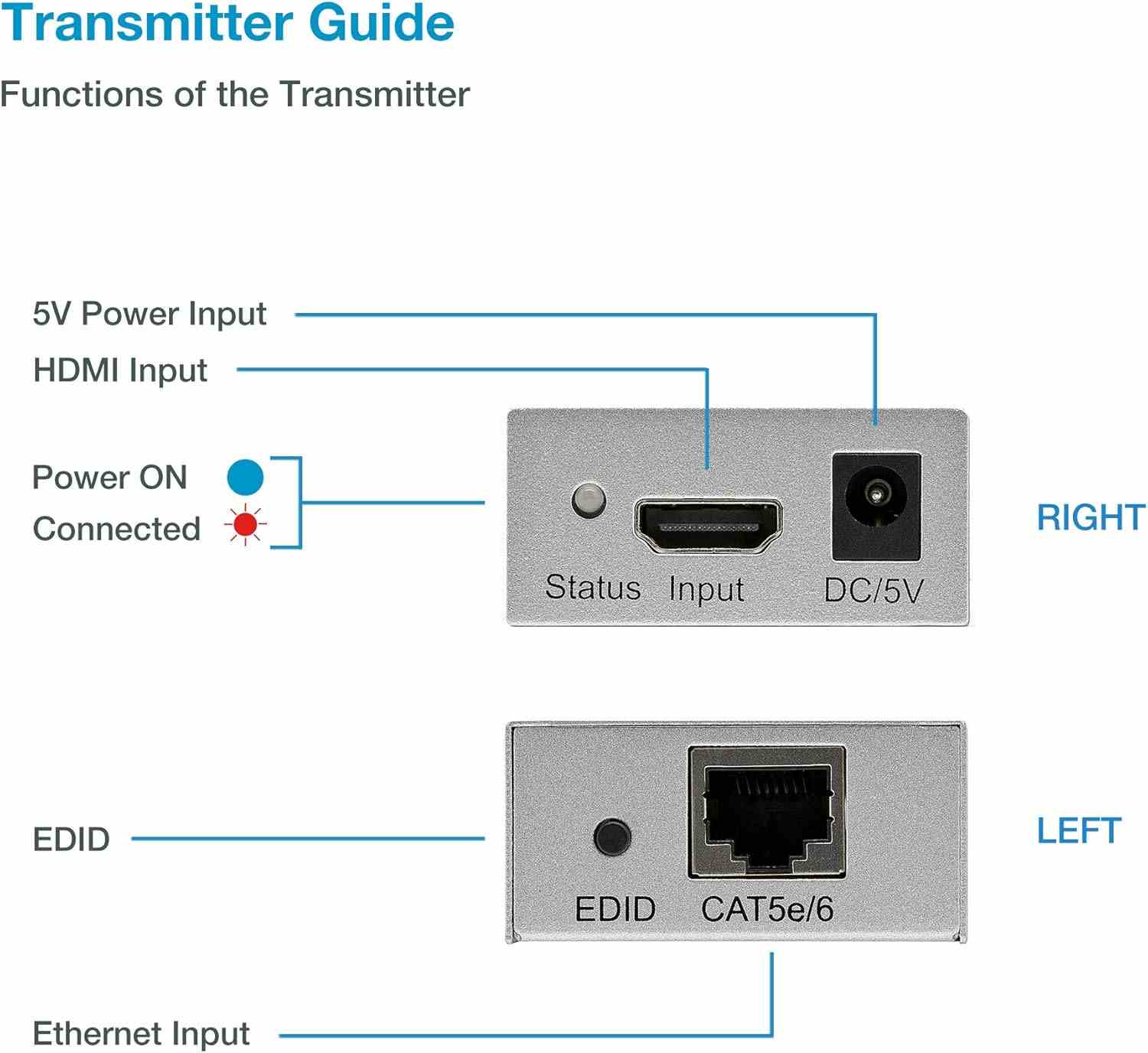

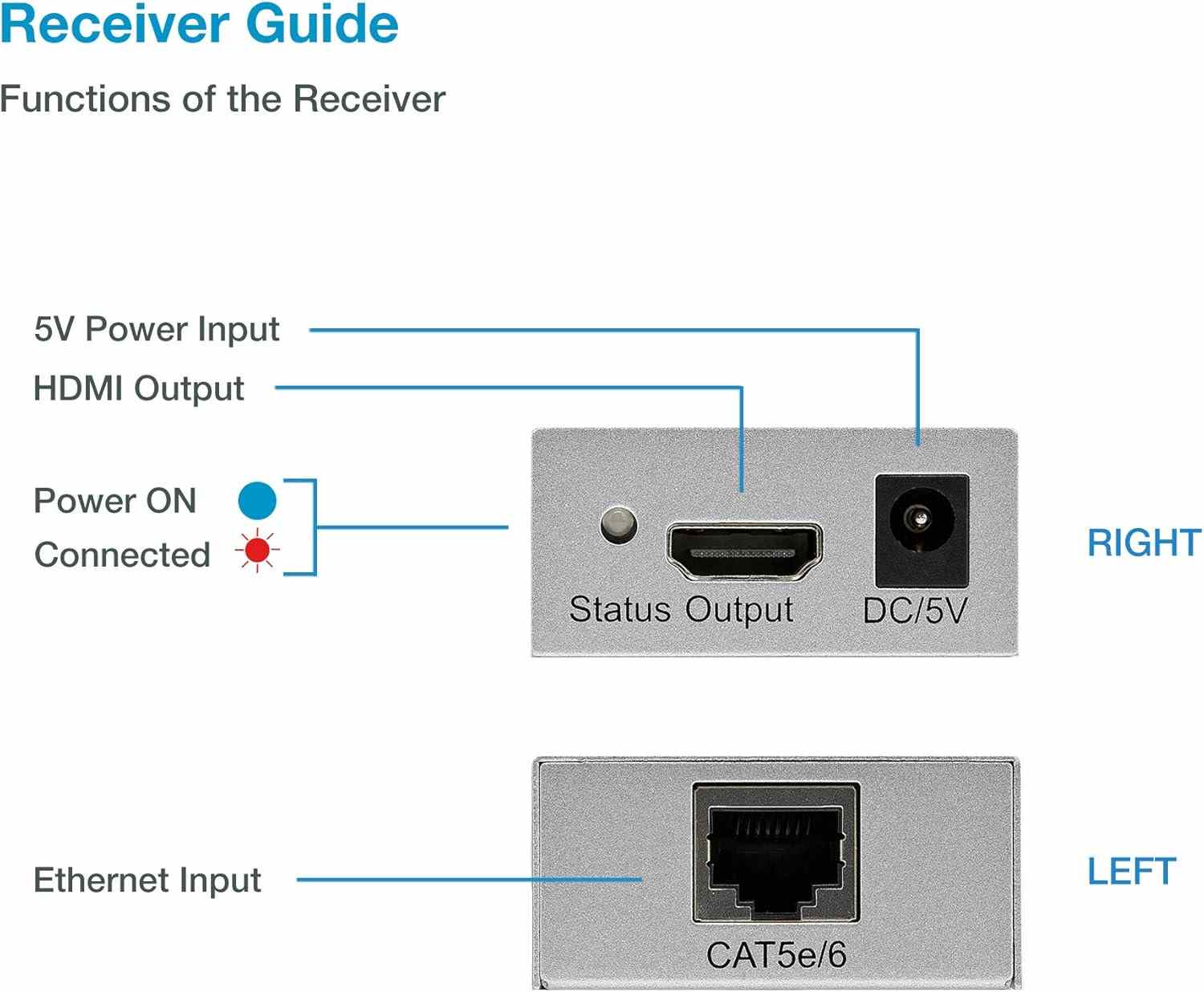

- The transmitter and receiver have signaling LEDs to indicate when the units have been connected and the signal is being transmitted.
- Operating temperature: -15 to + 55 ° C
- Transmitter and receiver dimensions: 81mm x 47mm x 22mm
- Transmitter weight: 102g
- Receiver weight: 103g
Package contains:
1x Transmitter unit
1x Receiver Unit
1x manual
2x power adapter
Use an uninterrupted straight Cat5e / Cat6 cable with strong copper conductors min. AWG24.
Extenders must not be plugged into an Ethernet network.
